Battery Quick Charge Connector Kit
原价为：$19.99。$15.99当前价格为：$15.99。

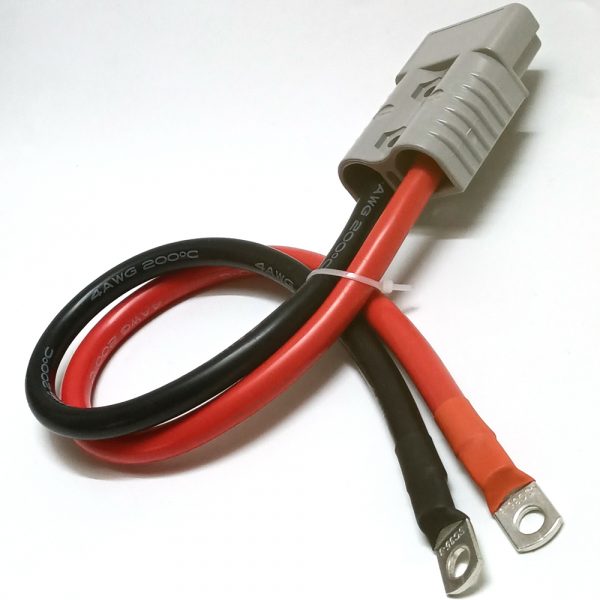

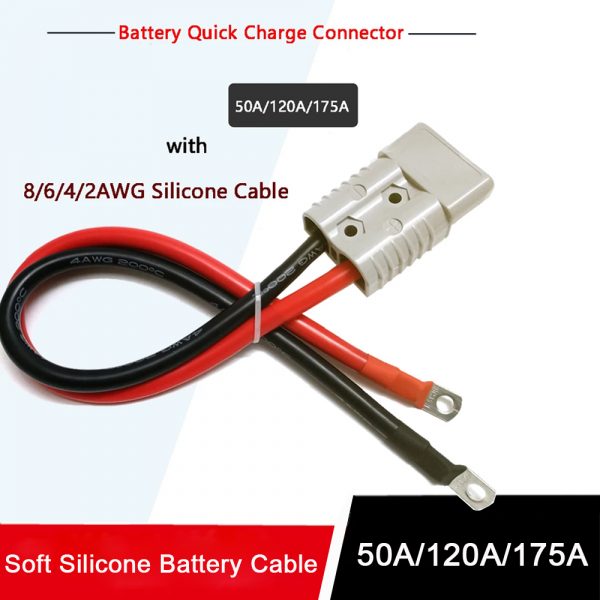

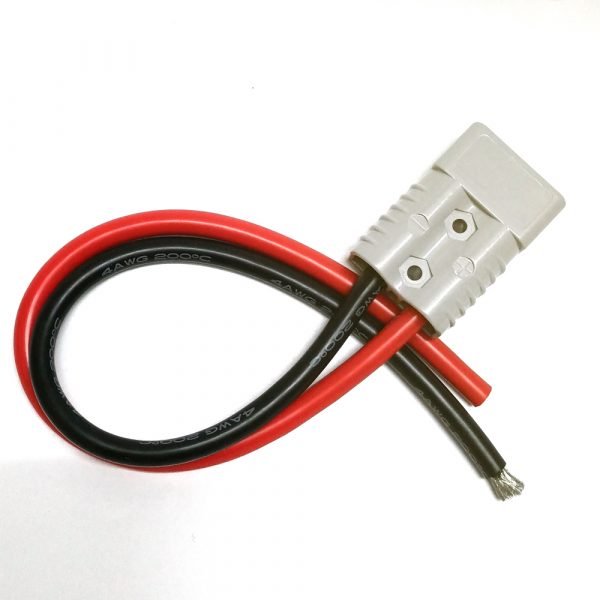

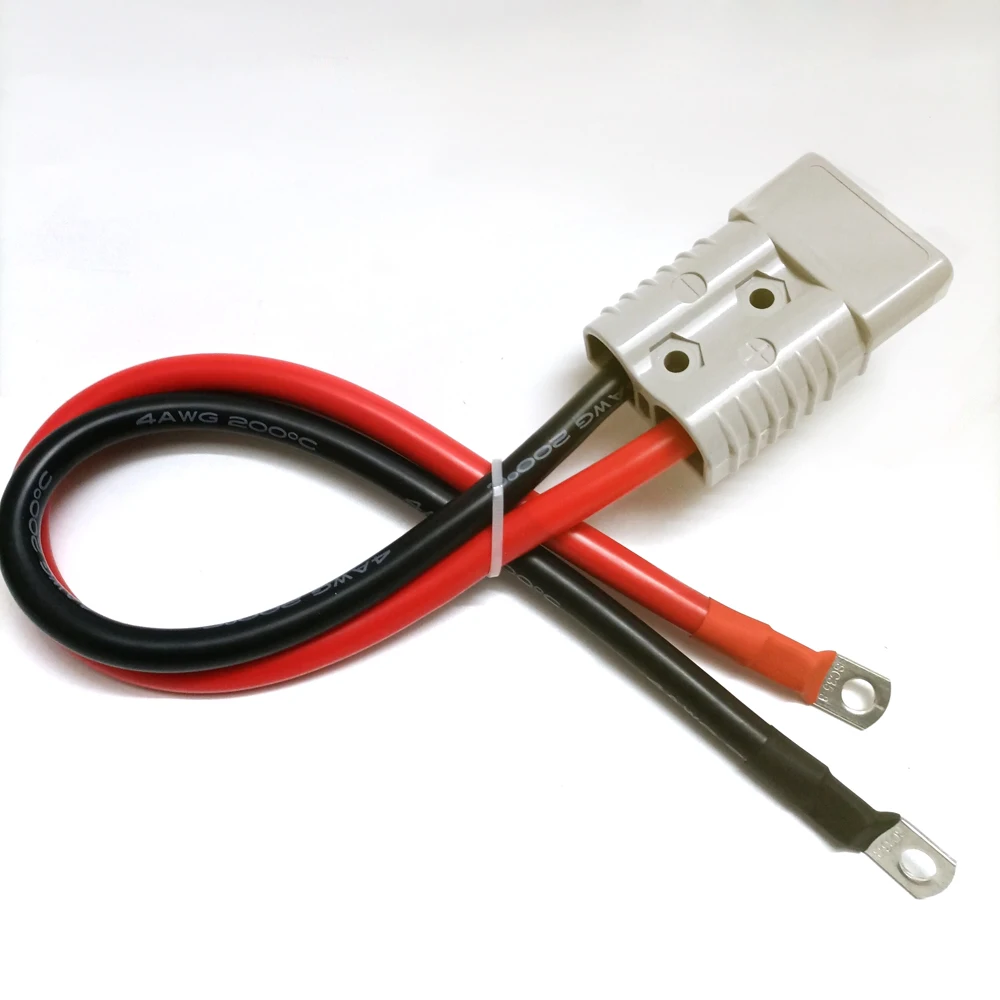

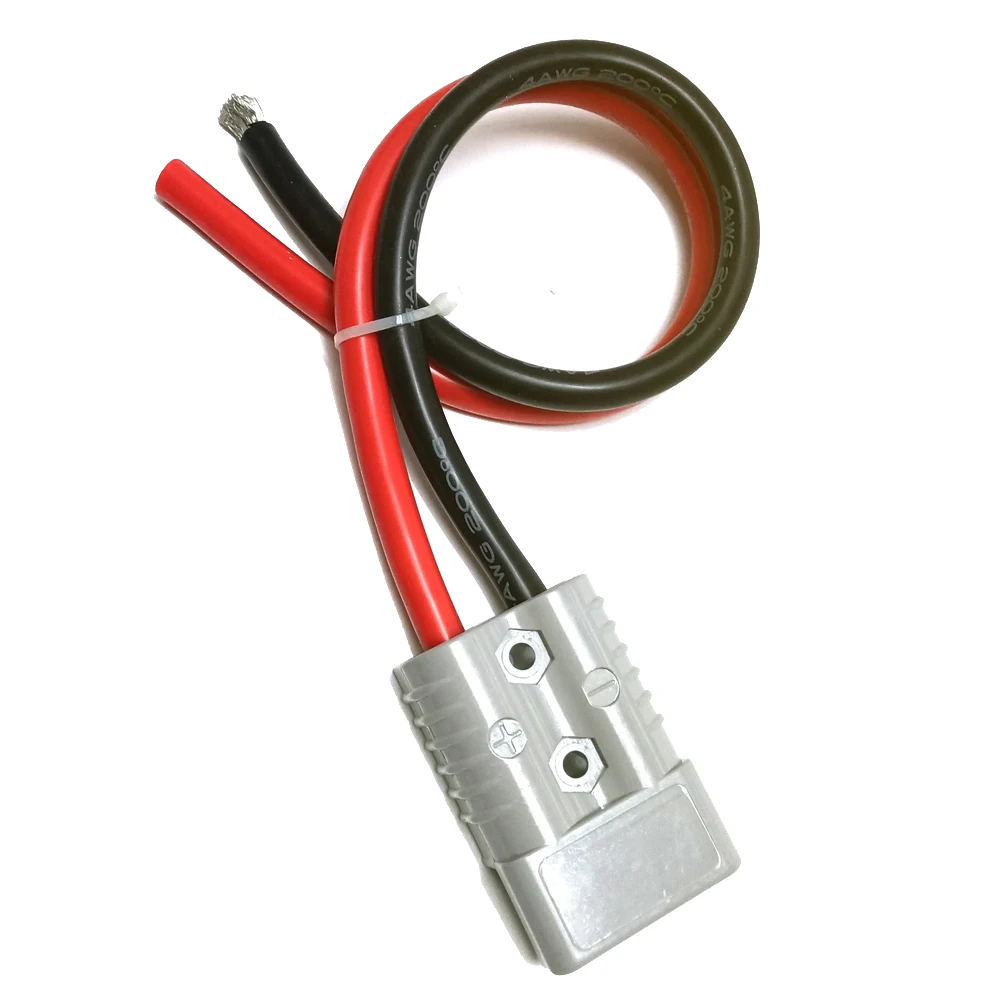

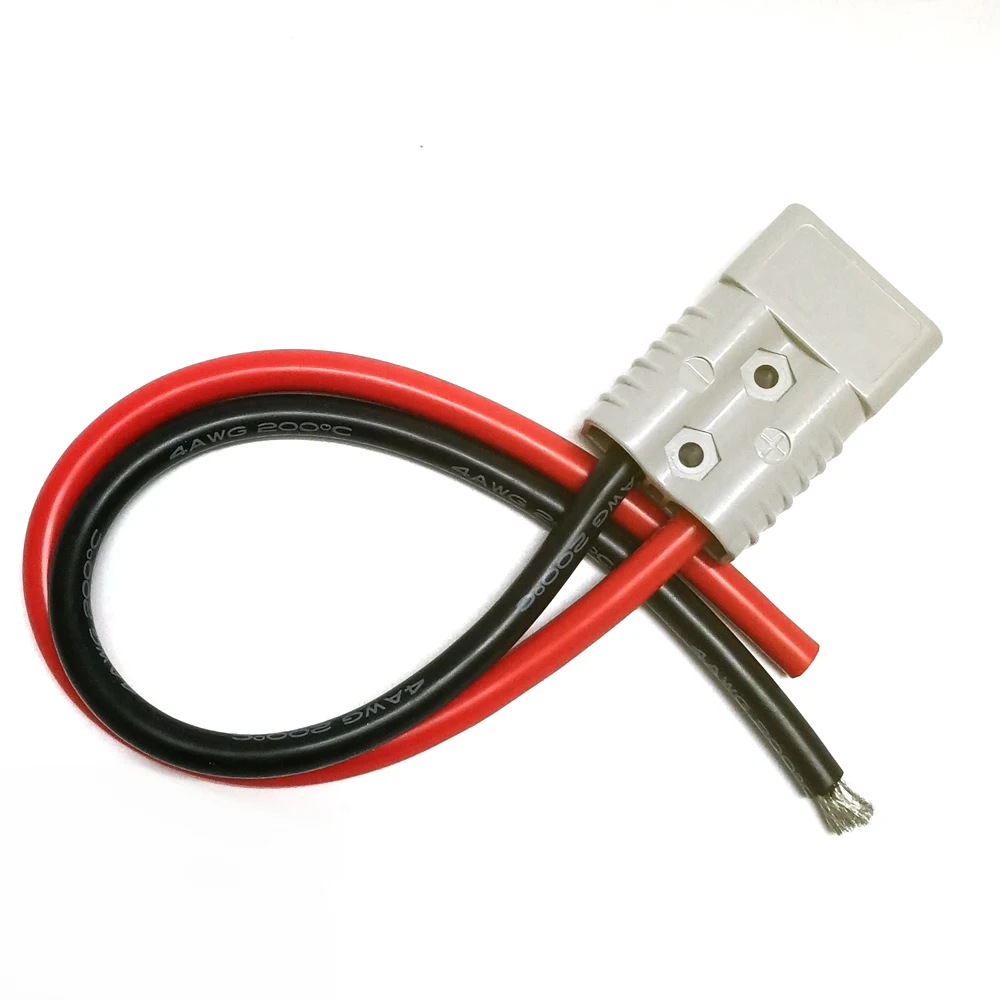

Quick Charge Connectors 50A/120A/175A 600V Double Pole Connectors with Silicone Cable for Electric Car Battery Charging Plug High Current Connector Kit
Description :

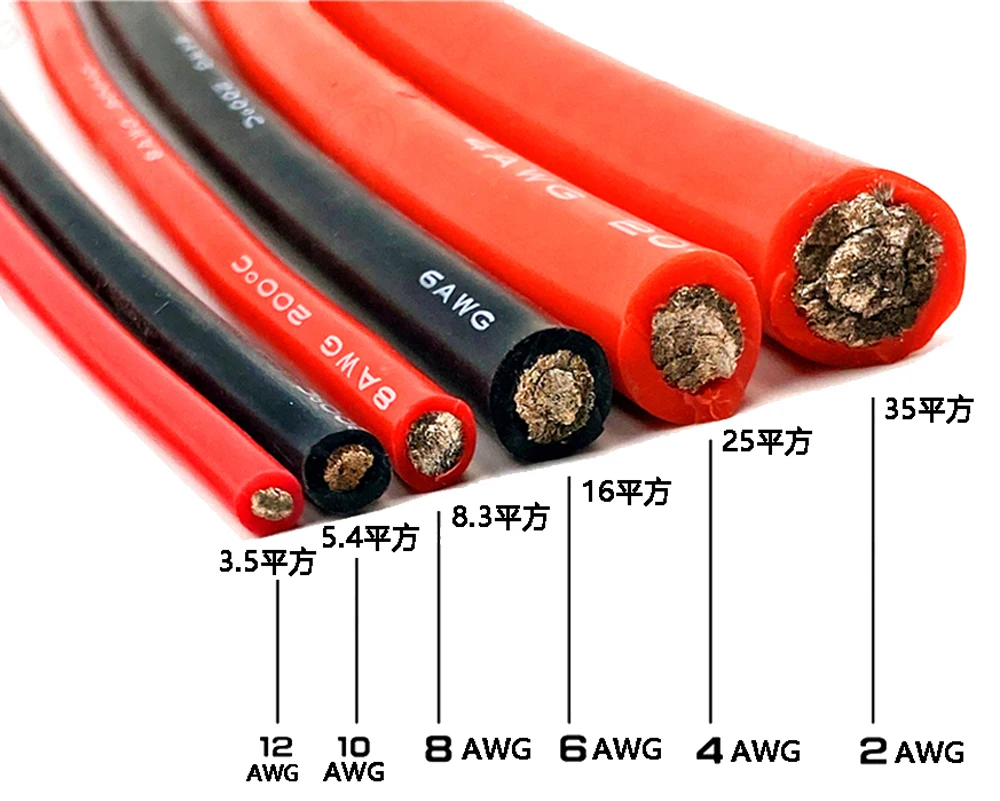

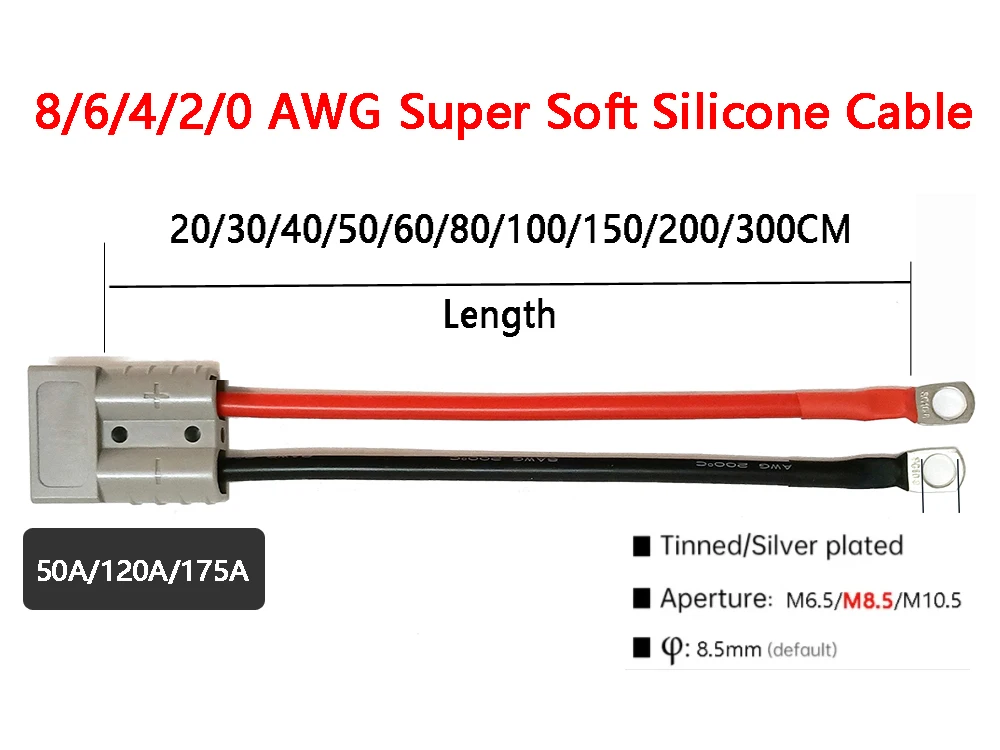

Wire gauge:8AWG(8.3mm²) / 6AWG(16mm²) / 4AWG(25mm²)/2AWG(35mm²)/0AWG(50mm²)
Conductor material:Stranded tinned copper
Inner-core diameter:0.08mm
Insulation material:high quality silicone
Temperature range:-60°C~+200°C
Rated voltage:600V;
Length:20/30/40/50/60/80/100 cm;

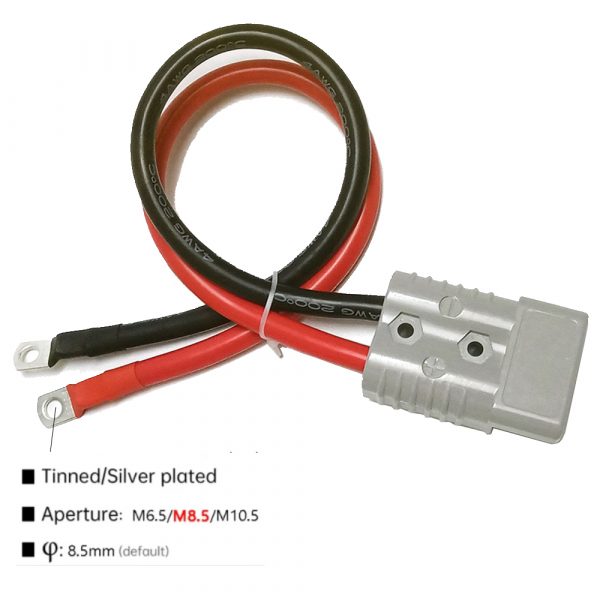

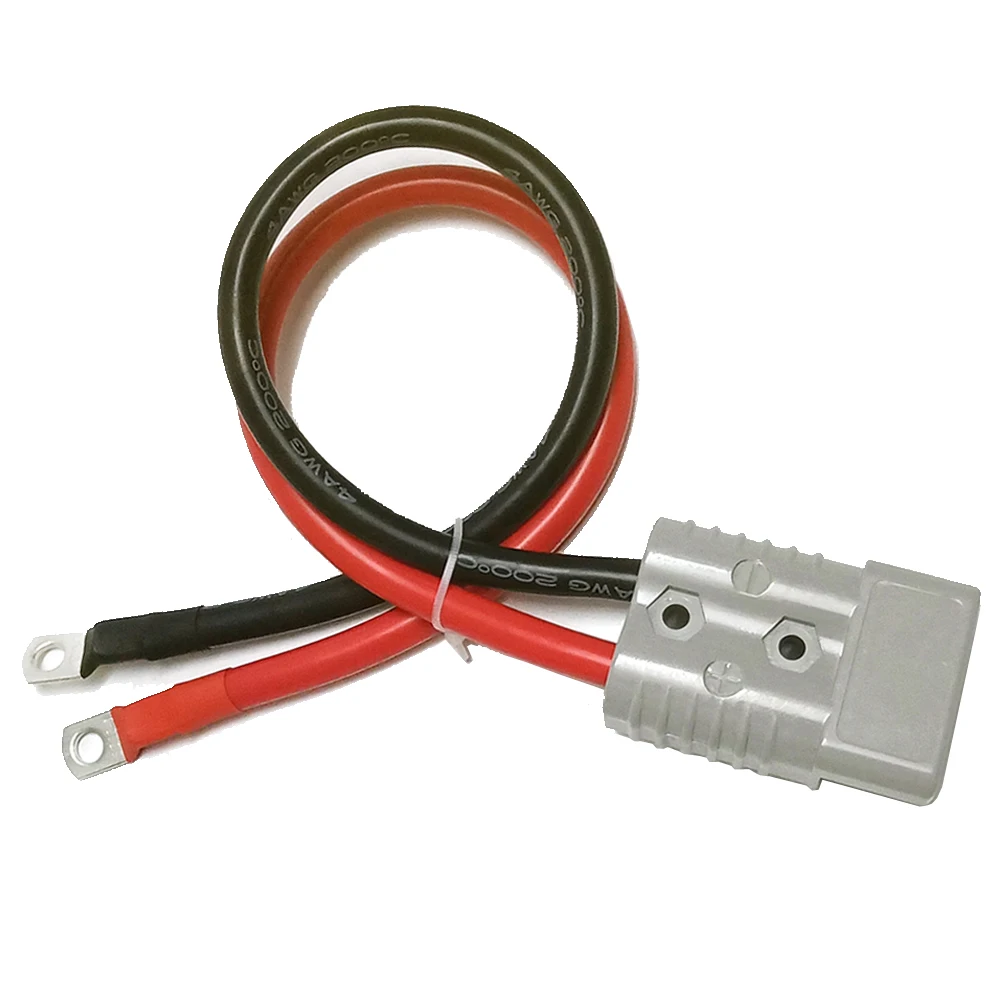

About lugs:
●material: Tinned copper;
●Aperture::8.5mm/If you need M6.5/M10.5, please note
●installation method: Crimping;
Application:Used for connection of car battery, Lithium battery, inverter, etc.
50A+8AWG Wire
▷50A Power two-pole plug(Gray)
▷10mm² Copper wire(Cross section 8AWG)
50A+6AWG Wire
▷50A Power two-pole plug(Gray)
▷16mm² Copper wire(Cross section 6AWG)
120A+6AWG Wire
▷120A Power two-pole plug(Gray)
▷16mm² Copper wire(Cross section 6AWG)
120A+4AWG Wire
▷120A Power two-pole plug(Gray)
▷25mm² Copper wire(Cross section 4AWG)
175A+4AWG Wire
▷175A Power two-pole plug(Gray)
▷25mm² Copper wire(Cross section 4AWG)
175A+2AWG Wire
▷175A Power two-pole plug(Gray)
▷35mm² Copper wire(Cross section 2AWG)
175A+0AWG Wire
▷175A Power two-pole plug(Gray)
▷50mm² Copper wire(Cross section 0AWG)
If you need A M6/M8/M10 or customize the connector and length, please contact online customer service
Specification table:
|
Specifications (AWG) |
Copper wire shares
(compos.NO./OD) |
Insulation thickness
(mm) |
Diameter (mm) | Overall diameter
(mm) |
Conductor resistance
(Ohm/km) |
Sectional area (mm2) | Carrying current
(ampere) |
packing
(M/coils) |
|
50mm2 |
10000/0.08TS |
2.4 |
9.24 |
14 |
0.63 |
50 |
630 |
50 |
|
2AWG |
6700/0.08TS |
2.6 |
7.73 |
12.5 |
0.89 |
35 |
500 |
50 |
|
4AWG |
5000/0.08TS |
2.4 |
6.53 |
11 |
1.25 |
25 |
400 |
50 |
|
6AWG |
3200/0.08TS |
1.65 |
5.23 |
8.5 |
1.9 |
16 |
300 |
100 |
| 8AWG | 1650/0.08TS | 1.5 | 3.75 | 6.3 | 3.7 | 8.3 | 190 | 100 |

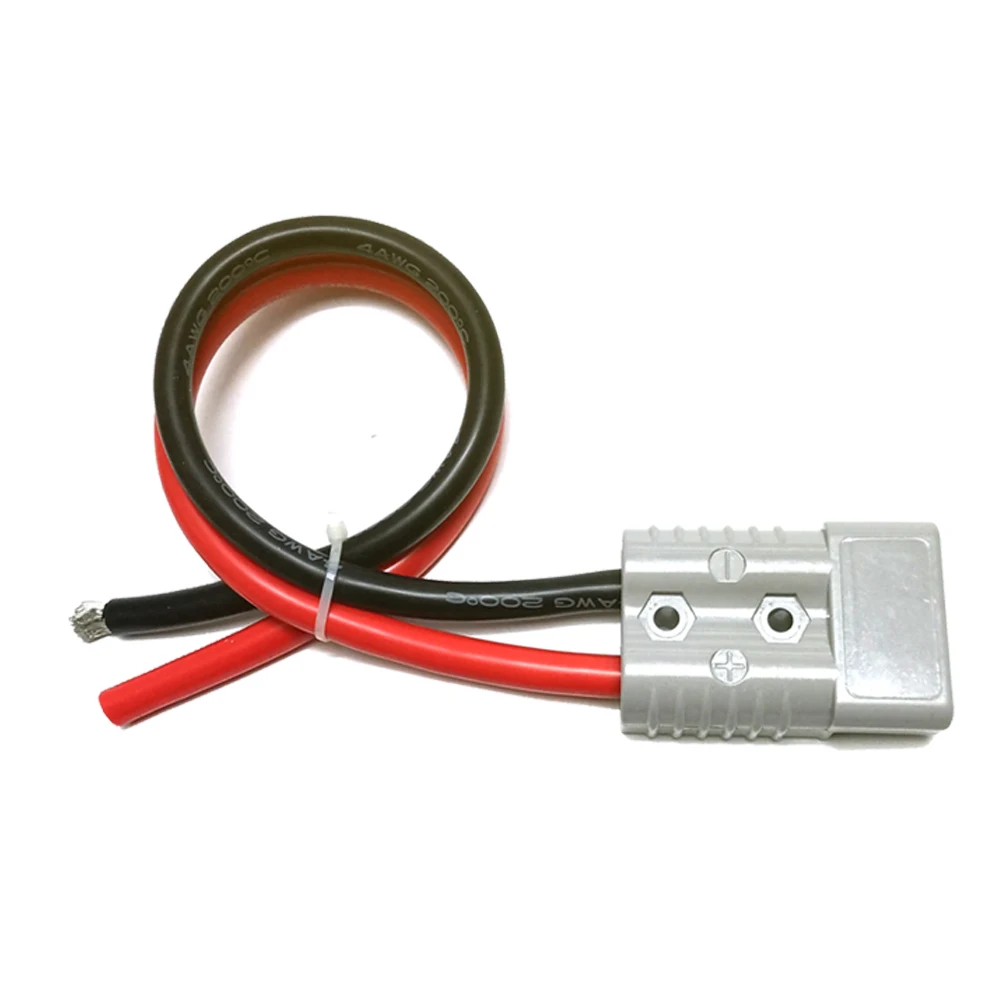

Type A:
Type B:
